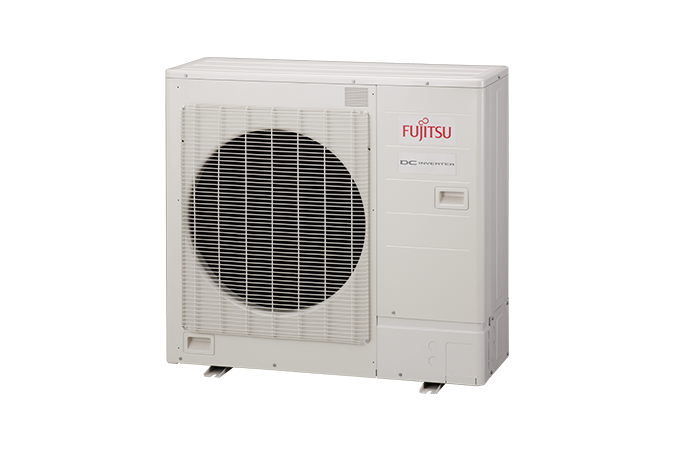

Multi-split Systems (Air Conditioners) 8-unit Multi-split Type AOYG45LBT8

14 kW

16 kW

Specification

Maximum Connectable Indoor Unit		8
Indoor unit connectable capacity	Cooling	11.2 - 18.2 kW
Power source	Phase	Single-phase
	Voltage	~ 230 V
	Frequency	50 Hz
Rated Capacity	Cooling	14 kW
Rated Capacity	Heating	16 kW
Input Power	Cooling	5.2 kW
Input Power	Heating	5.07 kW
Air Flow Rate	Cooling	4650 m³/h
Air Flow Rate	Heating	4800 m³/h
Sound Pressure Level^*2 (High)	Cooling	56 dB(A)
Sound Pressure Level^*2 (High)	Heating	58 dB(A)
Heat exchanger fin		Plate fin coil

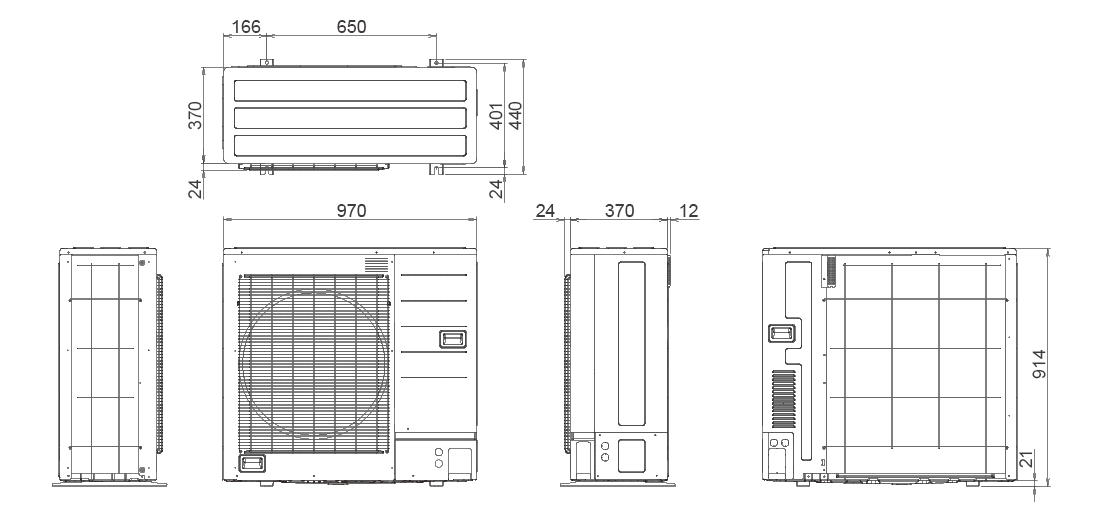

Net Dimensions	Height	914 mm
	Width	970 mm
	Depth	370 mm
Net Weight		98 kg
Net Weight		217 lbs
Connection Pipe Diameter	Liquid	9.52 mm
Connection Pipe Diameter	Gas	15.88 mm
Max Pipe Length	Total	115 m
Max Height Difference (Between Outdoor Unit and Each Indoor Unit)		30 m
Operation Range	Cooling	-5 to 46 °CDB
Operation Range	Heating	-15 to 24 °CDB
Refrigerant	Type	R410A
	Global Warming Potential	2,088
	Charge	3,450 g

Scroll

•: Cooling: Indoor temp. of 27°CDB/19°CWB; outdoor temp. of 35°CDB/24°CWB; Heating: Indoor temp. of 20°CDB/15°CWB; outdoor temp. of 7°CDB/6°CWB; Pipe length: 5 m (from outdoor unit to Branch box); 3 m (from Branch box to Indoor unit) Height difference: 0 m
