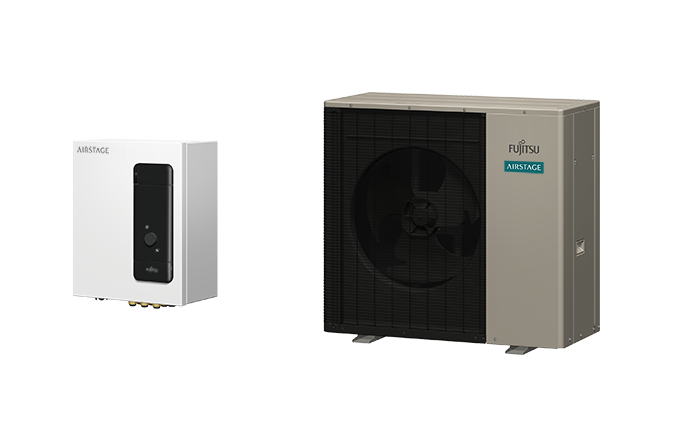

Monobloc type Comfort Series UTW-SCBEC / WPEG080KRF

Aesthetic and Compact Design
Energy efficiency class
Easy pipe work
Durability and Reliability
Comfort Control
Individual Control
Easy Installation & Maintenance
Supplies 60°C hot water even when the outdoor temperature is -5°C.
Supplies 55°C hot water even when the outdoor temperature is -10°C.
Can be used with a variety of heating systems, including under floor heating and radiators.*
Heating and DHW supply in one system.*
Up to Three independent control circuits.*
Operating range is -20 to 35°C in heating.
Cooling operation is possible

* Please refer to page W-046 and W-047 for optional parts information.

Specifications

Scroll

Temperature Application		55 °C	35 °C
Energy Efficiency Class		A++	A+++
Rated heat output (Prated)		9 kW	9 kW
Seasonal Space Heating Energy Efficiency(ηs)		144 %	205 %
Annual Energy Consumption		4880 kWh	3571 kWh
Sound Power Level	Outdoor Unit	56 dB(A)	56 dB(A)

Scroll

Dimensions	Height	483 mm
	Width	370 mm
	Depth	222 mm
Weight (Net)		10.0 kg
Water flow tempreature range	Max.	60 °C

Scroll

Current	Max.		19.1 A
Water flow tempreature range	Max.		60 °C

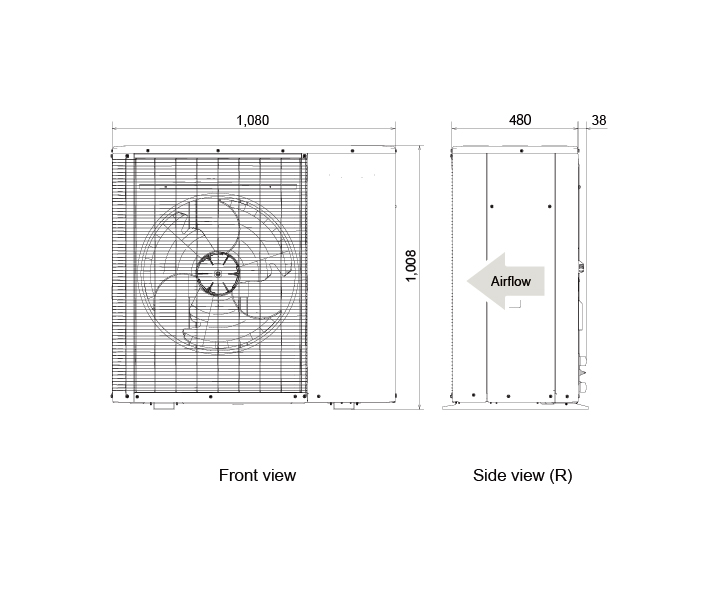

Dimensions	Height		1008 mm
	Width		1080 mm
	Depth		480 mm
Weight (Net)			109.0 kg
Refrigerant	Type		R32
	Global Warming Potential		675
	Charge		1.47 kg
Connection pipe	Water		φ25.4 mm
Operating range	Heating	Min.	35 °C
Operating range	Heating	Max.	-20 °C
