AIRSTAGE VRF Systems J-V Series
Features
Small, lightweight outdoor unit
Easy to carry, easy to install
Up to 14 indoor units* can be connected
Safety measures and improved install ability
Outdoor unit lineup
| 4HP | AJY040KBLAH | AJY040KELAH |
|---|---|---|
| 5HP | AJY045KBLAH | AJY045KELAH |
| 6HP | AJY054KBLAH | AJY054KELAH |
Features

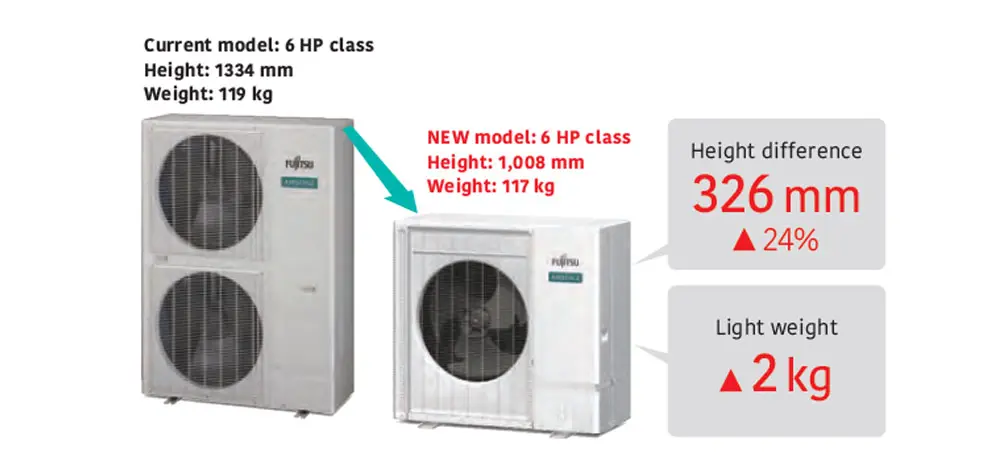

Small, lightweight outdoor unit
The new J-V Series (4–6 HP) uses a single-fan chassis—more compact than the previous two-fan units, expanding installation options.

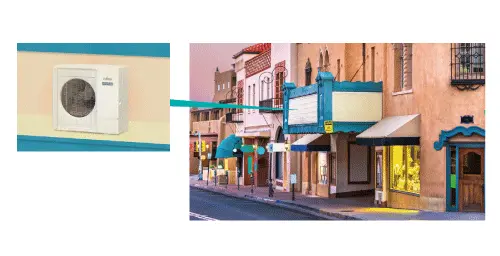

Easy to carry, easy to install
Compact outdoor units under 1,008 mm tall provide exceptional installation flexibility, allowing placement in narrow spaces such as under windows or on rooftops where they remain largely unobtrusive.

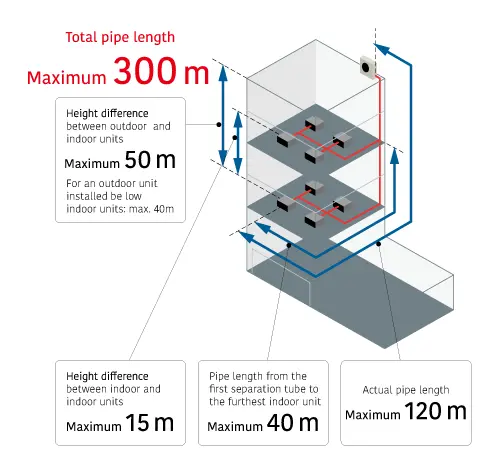

Long pipe length
Our advanced refrigerant control technology allows us to achieve a total refrigerant pipe length of 300 m. This provides high flexibility in system design.
Up to 14 indoor units* can be connected
The combination of smaller but sufficiently powerful indoor units and outdoor units with an optimized heat exchanging structure makes it possible to connect up to 14 indoor units, which is the best in its class.
- *:
- 6 HP model.

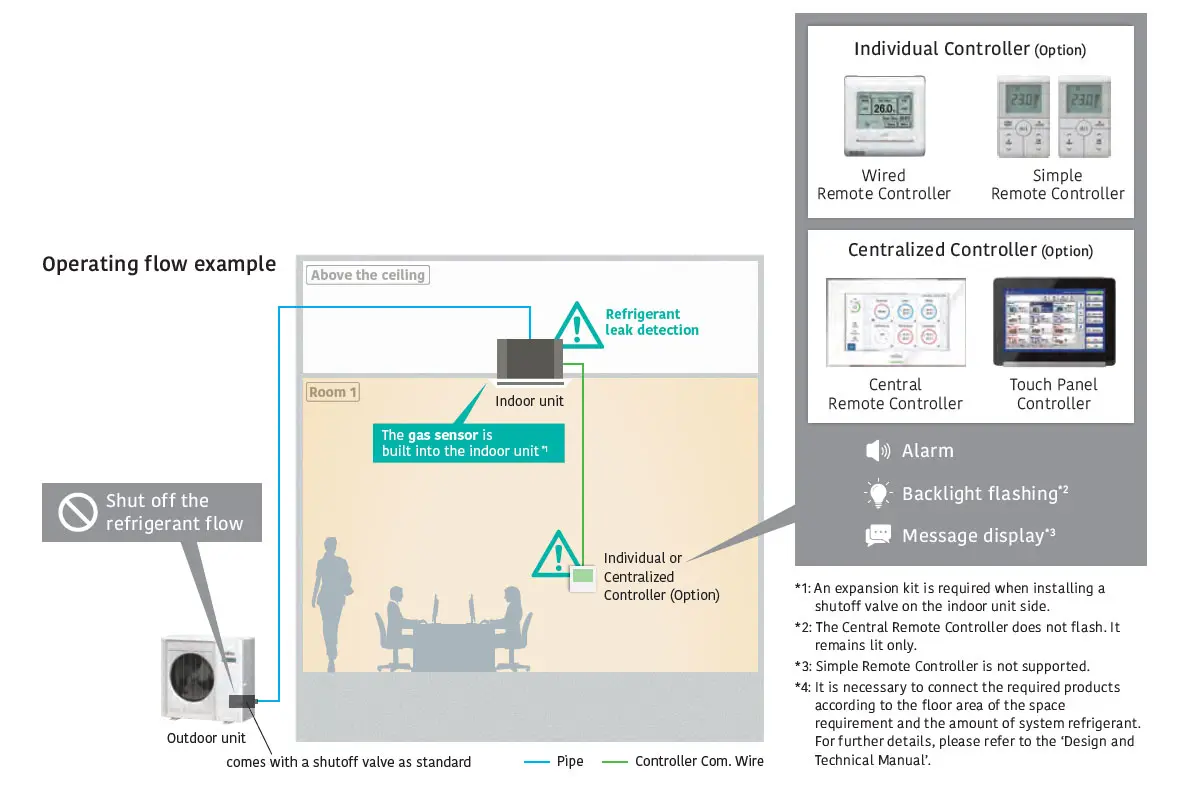

Safety measures and improved install ability
The J-V Series comes with a shutoff valve as standard, eliminating the need for an additional shutoff valve.*4 When combined with the new indoor unit featuring a built-in gas sensor, installation is significantly simplified. Furthermore, the optional individual remote control can serve as an alarm in the event of refrigerant leakage, eliminating the need for additional on-site procurement and thereby enhancing both convenience and safety.
High Energy Saving
J-V provides environmentally conscious, high-efficiency operation while ensuring comfort.

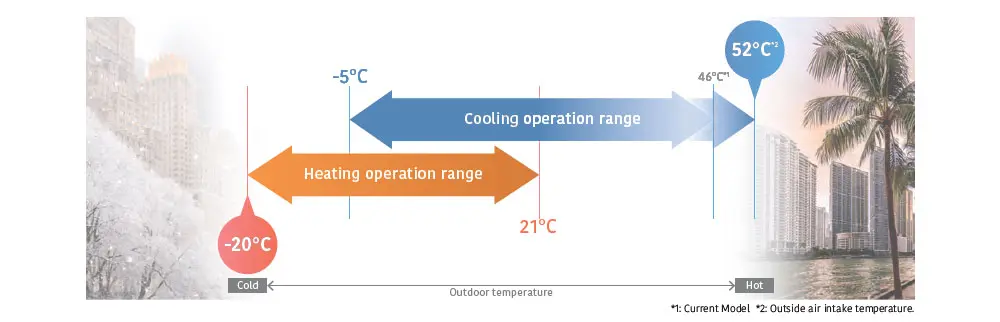

Extended operating range for ambient temperature
Extended operable ambient temperature enables an offer to different regions with different temperature condition.
External static pressure
External static pressure measures up to 35 Pa. Even if the outdoor unit is installed in a small space to hide it, the grille and duct airflow path required for exhaust air can be installed up to a static pressure value of 35 Pa.

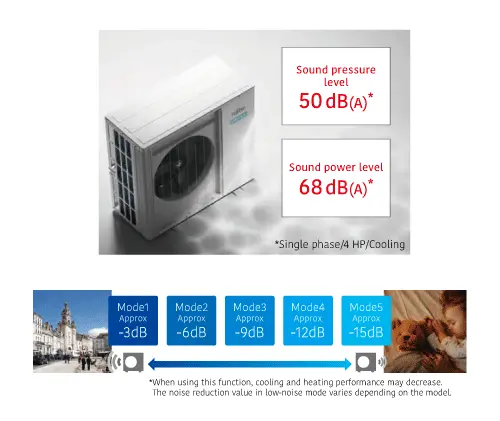

Environmentally conscious with low-noise mode
5-steps low-noise modes are available. This allows for detailed noise control in various external environments.
