Heat Pump for Small-capacity type J-V Series AJY040KELAH [3Phase]

12.1 kW

12.1 kW (Nominal) / 13.6 kW (Max.)

*: 6 HP model.

Specifications

Rated Capacity Range	4 HP
Max. Number of Connectable Indoor Units	1 - 11
Connectable Capacity of Indoor Units	6.1 - 18.1 kW

Scroll

Power Source	Phase	3 phase 3
	Voltage	400 V
	Frequency	50 Hz
Capacity	Cooling	12.1 kW
	Nominal Heating	12.1 kW
	Max. Heating	13.6 kW
Input Power	Cooling	3.25 kW
	Heating	2.67 kW
	Nominal Heating	2.67 kW
	Max. Heating	3.38 kW
EER	Cooling	3.72 W/W
COP	Nominal Heating	4.52 W/W
COP	Max. Heating	4.02 W/W
SEER	Cooling	7.25
SCOP	Heating	4.50
ηc	Cooling	287.0 %
ηh	Heating	177.0 %
Airflow Rate		5900 m³/h
Sound Pressure Level	Cooling	50 dB(A)
Sound Pressure Level	Heating	52 dB(A)
Sound Power Level	Cooling	68 dB(A)
Sound Power Level	Heating	68 dB(A)
Max. External Static Pressure		35 Pa
Compressor Motor Output		2.9 kW
Heat Exchanger Fin		Blue fin
Net Dimensions	Height	1008 mm
	Width	1080 mm
	Depth	480 mm
Net Weight		118 kg
Refrigerant	Type	R32
	Global Warming Potential	675
	Charge	4.0 kg (2.7 CO2eq–T)
Connection Pipe Diameter	Liquid	φ9.52 mm
Connection Pipe Diameter	Gas	φ15.88 mm
Total Pipe Length		300 m
Max. Height Difference (Outdoor Unit: Upper/Lower)		50 / 40 m
Operation Range	Cooling	-5 to 52 °CDB
Operation Range	Heating	-20 to 21 °CDB

Scroll

Note :: Specifications are based on the following conditions.
Cooling:: Indoor temperature of 27°CDB/19°CWB, and outdoor temperature of 35°CDB/24°CWB.
Heating:: Indoor temperature of 20°CDB/(15°CWB), and outdoor temperature of 7°CDB/6°CWB.
Pipe length:: 11 m; Height difference between outdoor unit and indoor unit: 0 m. The protective function may work when using it outside the operation range.
-5 to 52 °CDB:: Outside air intake temperature.

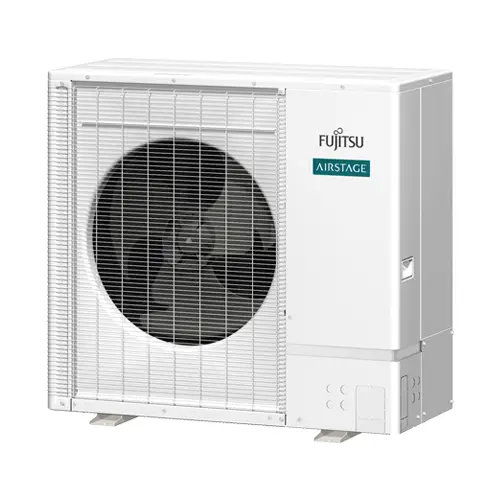

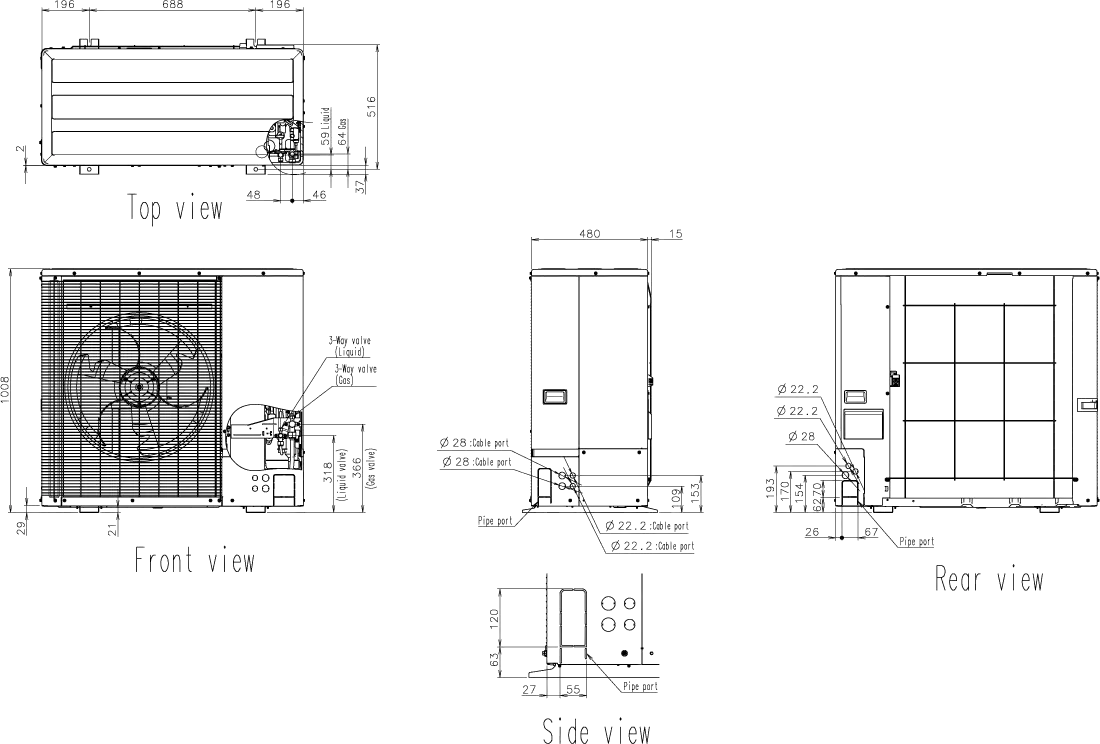

Outdoor unit
