AIRSTAGE VRF Systems VU-V Series
Features
Intelligent refrigerant control
Energy saving technology that boosts operation efficiency
Reducing outdoor unit installation space
Piping flexibility and safety measures
Enhanced disaster safety measures
Extended operating range for ambient temperature
| Space saving combination | Energy efficiency combination | |
|---|---|---|
| 8 HP | AJY072HALAH | |
| 10 HP | AJY090HALAH | |
| 12 HP | AJY108HALAH | |
| 14 HP | AJY126HALAH | |
| 16 HP | AJY144HALAH | AJY144HALAHH |
| 18 HP | AJY162HALAH | AJY162HALAHH |
| 20 HP | AJY180HALAH | AJY180HALAHH |
| 22 HP | AJY198HALAH | AJY198HALAHH |
| 24 HP | AJY216HALAH | AJY216HALAHH |
| 26 HP | AJY234HALAH | |
| 28 HP | AJY252HALAH | AJY252HALAHH |
| 30 HP | AJY270HALAH | |
| 32 HP | AJY288HALAH | AJY288HALAHH |
| 34 HP | AJY306HALAH | |
| 36 HP | AJY324HALAH | AJY324HALAHH |
| 38 HP | AJY342HALAH | AJY342HALAHH |
| 40 HP | AJY360HALAH | |
| 42 HP | AJY378HALAH | |
| 44 HP | AJY396HALAH |
Features

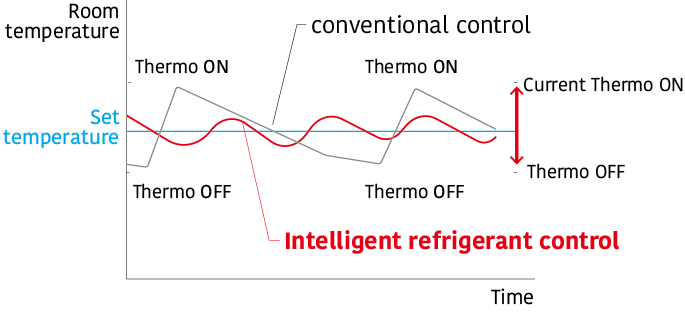

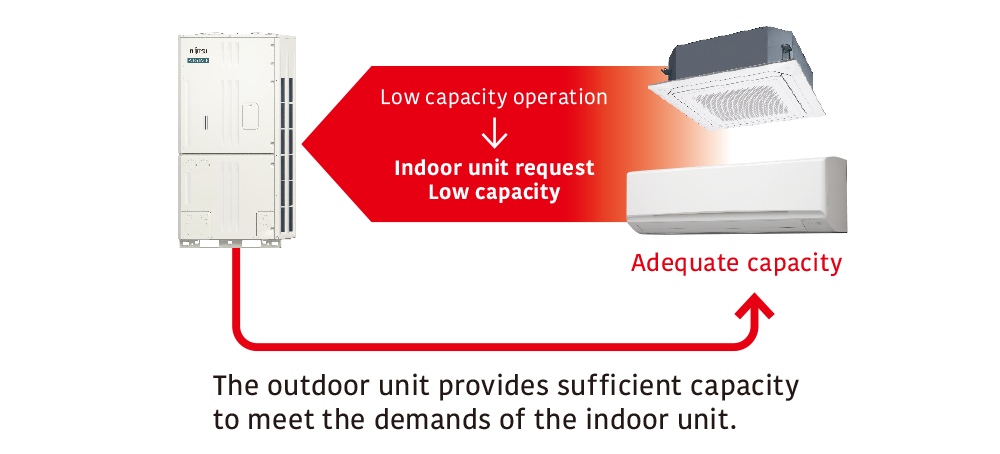

Intelligent refrigerant control
The Intelligent refrigerant control operates with suitable control corresponding to the heat load of the room and offers a more comfortable environment. The Intelligent refrigerant control can also provide increased energy savings.

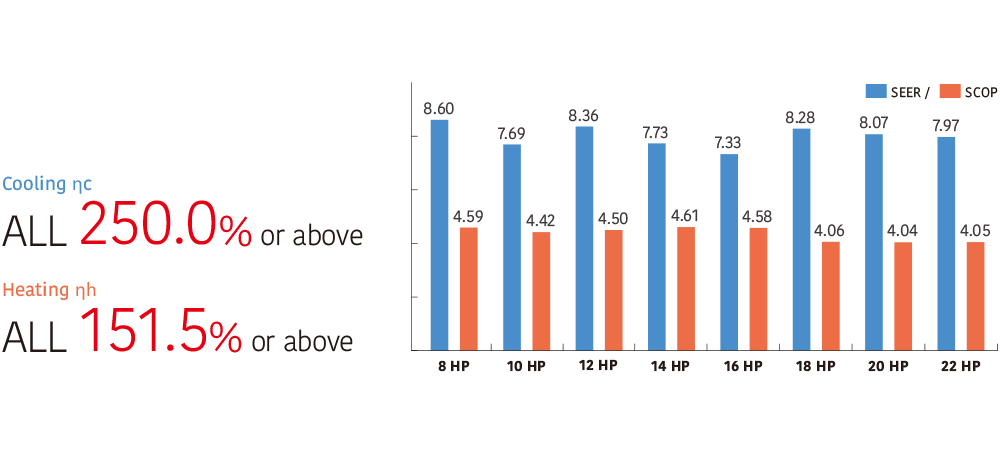

Highly efficient operation
VU-V provides environmentally conscious, high-efficiency operation while ensuring comfort.

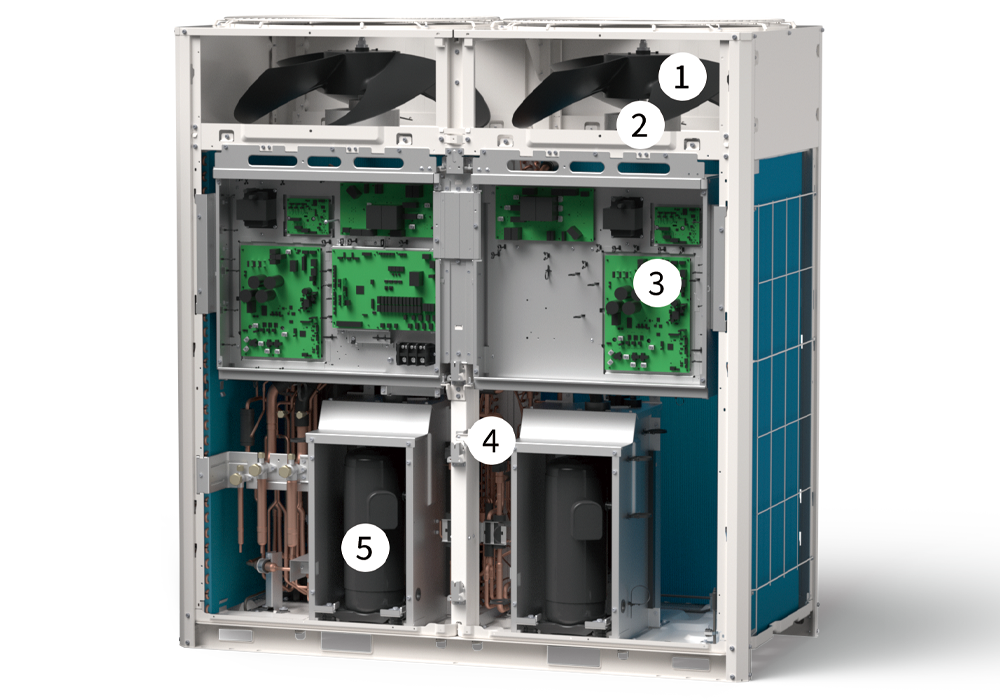

Energy saving technology that boosts operation efficiency
1. Powerful large propeller fan
The fan uses CFD* technology to achieve both high performance and low noise operation.
2. 3-phase DC fan motor
The use of a DC fan motor with sophisticated driver control improves energy efficiency substantially. In addition, this motor operates quietly.
3. Sine-wave DC inverter control
High-efficiency is realized by the adoption of reduced switching loss IPM.
4. Subcooling heat exchanger
High heat exchange efficiency is achieved by using an internal projection-shape double-pipe construction.
5. Scroll compressor
The combination of a scroll compressor with a wide rotational frequency range from 15 to 120 rps and our proprietary sensorless sine-wave control that smoothly controls the input power into the motor achieves more energy-efficient and quieter operation.
Refrigerant flow control
Refrigerant flow is automatically adjusted within the heat exchanger depending on airflow balance.
If the outdoor air intake airflow of the left and right heat exchangers is different, the system automatically monitors the refrigerant status and adjusts the refrigerant flow rate of each heat exchanger to prevent loss of thermal efficiency.

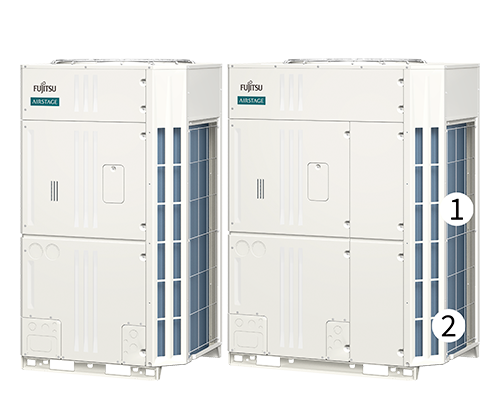

8-16 HP models
1. 4-face heat exchanger
2. Front intake port (Corner cut air inlet structure)
In multiple outdoor unit installations, the unique front intake design improves airflow into the heat exchanger.

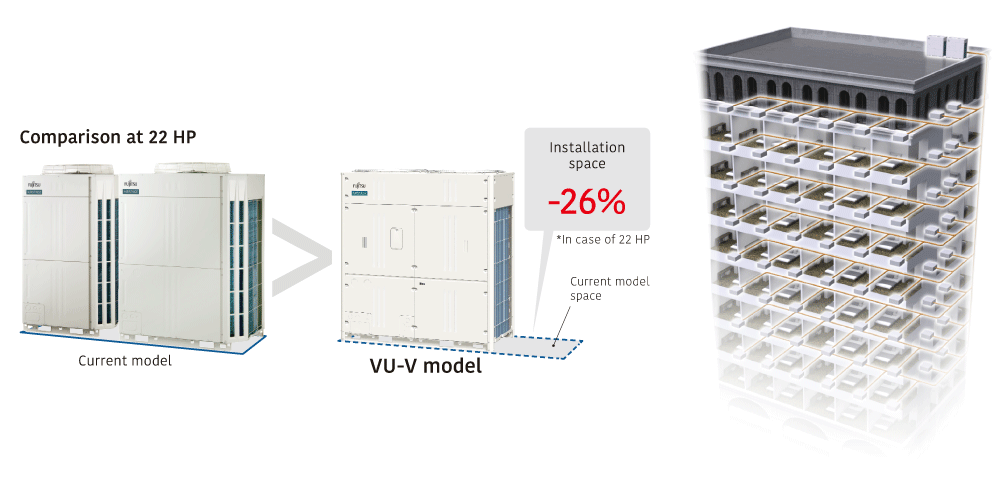

Reducing outdoor unit installation space
A single outdoor unit can handle air conditioning up to 22 HP. This reduces reduce installation space and the number of outdoor units required.

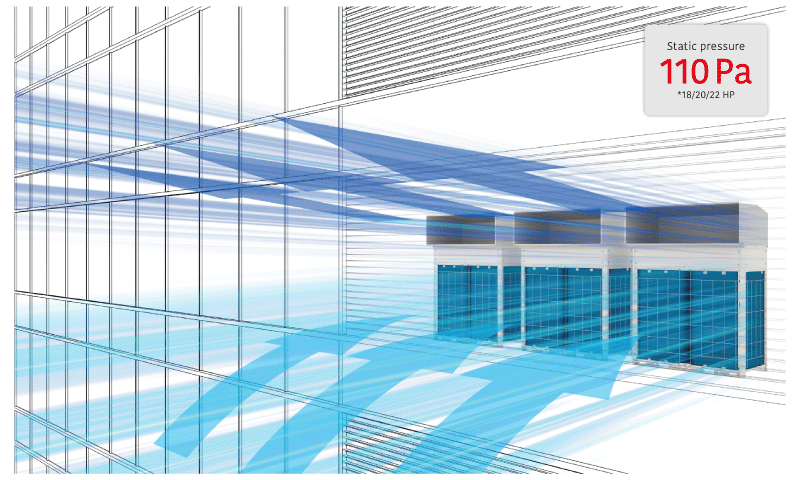

High external static pressure
The outdoor unit’s external static pressure is adjustable up to 110 Pa (18/20/22 HP).
This facilitates mechanical room and hood installations.

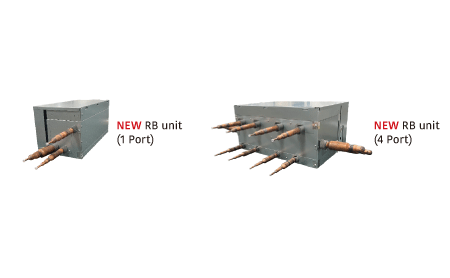

Piping flexibility and safety measures
RB Unit includes Shut off valve kit function
In addition to switching between cooling and heating modes, an electronic expansion valve function has been added to shut off the refrigerant. This eliminates the need to install a separate shutoff valve kit, reducing costs and improving installation efficiency.
No need to use Shut off valve kit for heat recovery use, provide simple installation
Enhanced disaster safety measures
It features a power backup function for use during power outages. Furthermore, to prevent refrigerant leakage during power failures, the shut-off valve closes when a power outage occurs.
Extended operating range for ambient temperature
*In the case of heat recovery .
Extended operable ambient temperature enables an offer to different regions with different temperature condition.

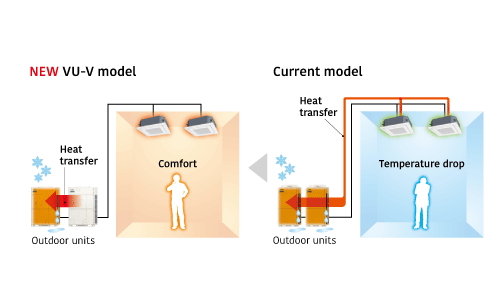

Rotation defrosting
Heat Recovery type & additional type only
Rotation defrosting uses heat from other units instead of room heat, minimizing temperature drops and maintaining comfort during defrosting.

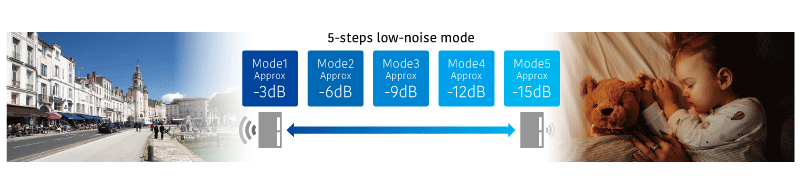

Environmentally conscious with low-noise mode
*When using this function, cooling and heating performance may decrease.
5-steps low-noise modes are available.
This allows for detailed noise control in various external environments.

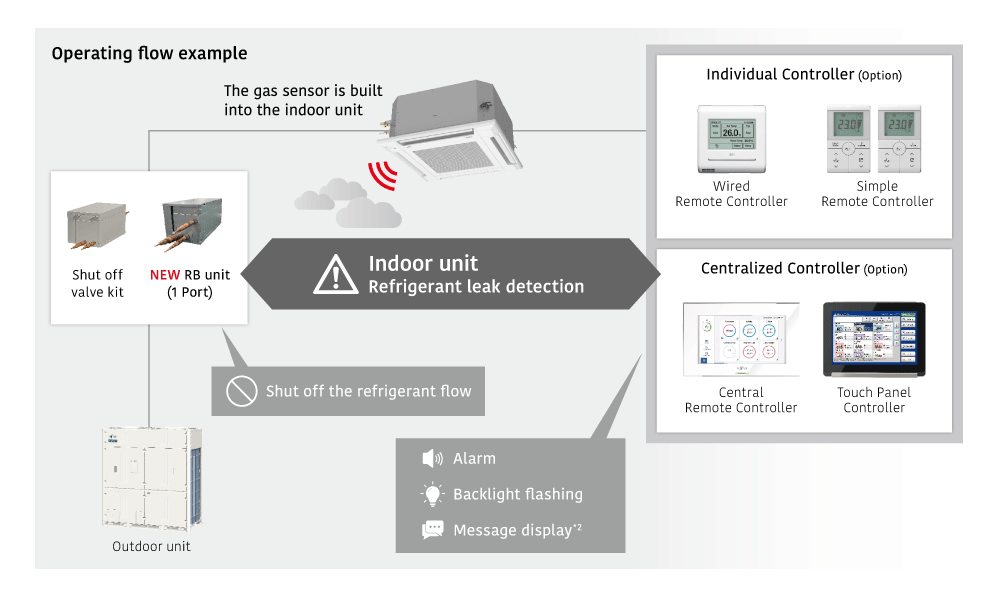

Safety measures in case of refrigerant leak
*It is necessary to connect the required products according to the floor area of the space requirement and the amount of system refrigerant.*2: The operation varies depending on the type of remote controller.
Indoor units compatible with R32 refrigerant are equipped with a refrigerant leak detector. (Some indoor units require optional purchase.) Depending on the conditions of the room where the indoor unit is installed, countermeasures can be implemented using detection equipment.*1 When activated, the refrigerant leak detector triggers the “Shut off valve kit” and “Wired Remote Controller” to operate simultaneously. This notifies the user or administrator of a refrigerant leak while simultaneously stopping refrigerant circulation.
