Heat Pump / Heat Recovery Modular type VU-V Series AJY072HALAH  [3Phase]

Outdoor unit

Outdoor Unit :
AJY072HALAH
Download :
Catalogues

Features

  • Intelligent refrigerant control
  • Highly efficient operation
  • Energy saving technology that boosts operation efficiency
  • Reducing outdoor unit installation space
  • High external static pressure
  • Piping flexibility and safety measures
  • Enhanced disaster safety measures
  • Extended operating range for ambient temperature
  • Rotation defrosting
  • Environmentally conscious with low-noise mode
  • Safety measures in case of refrigerant leak

Capacity

Cooling   22.4 kW
Heating   22.4 kW (Nominal) / 25.0 kW (Max.)

Specifications

Rated Capacity Range 8 HP
Max. Number of Connectable Indoor Units*1 2 - 17
Connectable Capacity of Indoor Units 5.6 - 33.6 kW
Scroll
Power Source Phase 3 phase 3N
Voltage 400 V
Frequency 50 Hz
Capacity Cooling 22.4 kW
Nominal Heating 22.4 kW
Max. Heating 25.0 kW
Input Power Cooling 5.58 kW
Heating 4.50 kW
Nominal Heating 4.50 kW
Max. Heating 5.57 kW
EER Cooling 4.01 W/W
COP Nominal Heating 4.97 W/W
Max. Heating 4.48 W/W
SEER Cooling 8.60
SCOP Heating 4.59
ηc Cooling 341.0 %
ηh Heating 180.6 %
Airflow Rate 11100 m³/h
Sound Pressure Level*2 Cooling 57 dB(A)
Heating 58 dB(A)
Sound Power Level Cooling 77 dB(A)
Heating 78 dB(A)
Max. External Static Pressure 80 Pa
Compressor Motor Output 6.1 kW
Heat Exchanger Fin Blue fin
Net Dimensions Height 1690 mm
Width 930 mm
Depth 765 mm
Net Weight 251 kg
Refrigerant Type R32
Global Warming Potential 675
Charge 9.8 kg (6.6 CO2eq–T)
Total Pipe Length 700 m
Scroll
*
There is no change from the conventional model.
Note :
Specifications are based on the following conditions.
Cooling:
Indoor temperature of 80°F (26.7°C) DB / 67°F (19.4°C) WB, and outdoor temperature of 95°F (35.0°C) DB / 75°F (23.9°C) WB.
Heating:
Indoor temperature of 70°F (21.1°C) DB / 60°F (15.6°C) WB, and outdoor temperature of 47°F (8.3°C) DB / 43°F (6.1°C) WB.
Pipe length:
25ft. (7.5 m); Height difference between outdoor unit and indoor unit : 0ft. (0 m).

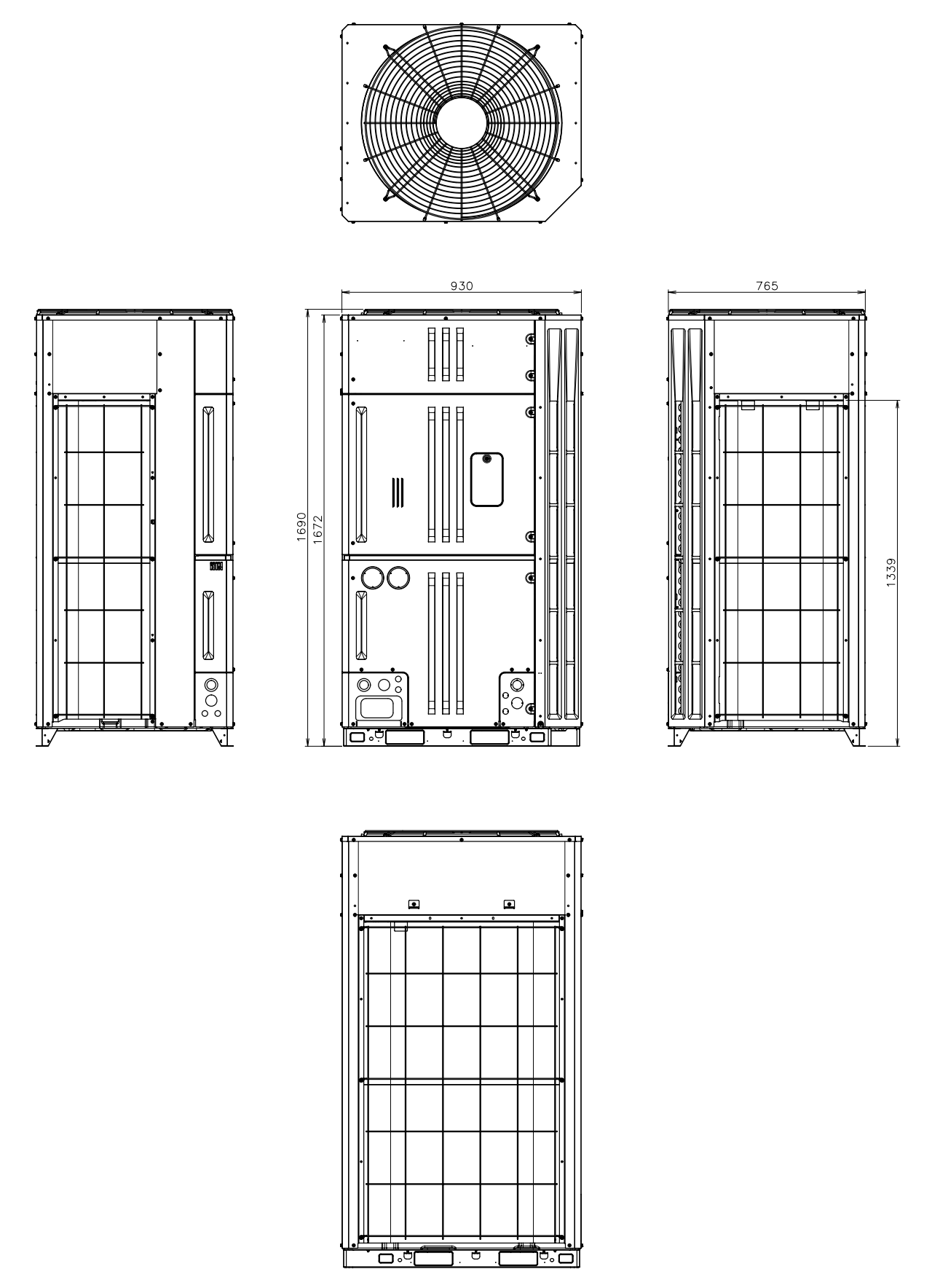

Dimensions

Outdoor Unit : AJY072HALAH

Outdoor unit
