Heat Pump / Heat Recovery Modular type VU-V Series AJY288HALAHH

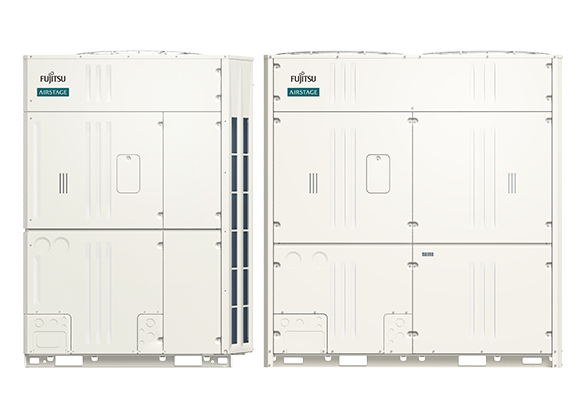

Outdoor unit

Outdoor Unit :
AJY288HALAHH
Download :
Catalogues

Features

  • Intelligent refrigerant control
  • Highly efficient operation
  • Energy saving technology that boosts operation efficiency
  • Reducing outdoor unit installation space
  • High external static pressure
  • Piping flexibility and safety measures
  • Enhanced disaster safety measures
  • Extended operating range for ambient temperature
  • Rotation defrosting
  • Environmentally conscious with low-noise mode
  • Safety measures in case of refrigerant leak

Specifications

Rated Capacity Range 32 HP
Max. Number of Connectable Indoor Units*1 2 - 64
Connectable Capacity of Indoor Units 35.0 - 135.0 kW
Scroll
Power Source Phase 3 phase
Voltage 400 V
Frequency 50 Hz
Capacity Cooling 90.0 kW
Heating 90.0 kW
Input Power Cooling 24.45 kW
Heating 21.71 kW
EER Cooling 3.68 W/W
COP Heating 4.15 W/W
SEER Cooling 8.01
SCOP Heating 4.34
ηc Cooling 317.2 %
ηh Heating 170.4 %
Airflow Rate 22200 + 13200 m³/h
Sound Pressure Level*2 Cooling 64 dB(A)
Heating 66 dB(A)
Max. External Static Pressure 110 Pa
Compressor Motor Output 6.10 x 2 + 7.90 x 1 kW
Heat Exchanger Fin Blue fin
Net Dimensions
Height X Width X Depth 		1690 x 1600 x 765 mm
1690 x 1240 x 765 mm
Net Weight 414 kg
278 kg
Refrigerant Type R32
Global Warming Potential 675
Charge 11.8 kg (8 CO2eq–T)
11.8 kg (8 CO2eq–T)
Scroll
*
There is no change from the conventional model.
Note :
Specifications are based on the following conditions.
Cooling:
Indoor temperature of 80°F (26.7°C) DB / 67°F (19.4°C) WB, and outdoor temperature of 95°F (35.0°C) DB / 75°F (23.9°C) WB.
Heating:
Indoor temperature of 70°F (21.1°C) DB / 60°F (15.6°C) WB, and outdoor temperature of 47°F (8.3°C) DB / 43°F (6.1°C) WB.
Pipe length:
25ft. (7.5 m); Height difference between outdoor unit and indoor unit : 0ft. (0 m).

Dimensions

Outdoor Unit : AJY288HALAHH
