Heat Pump / Heat Recovery Modular type VU-V Series AJY198HALAH  [3Phase]

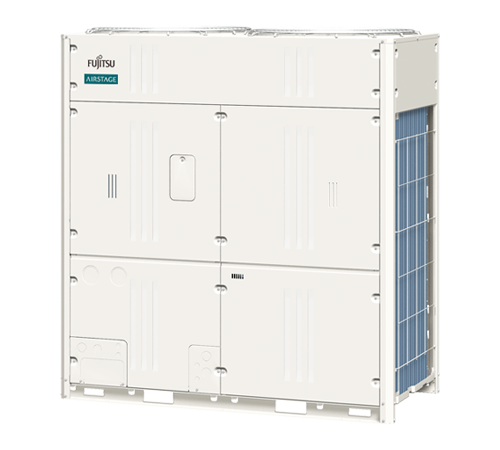

Outdoor unit

Outdoor Unit :
AJY198HALAH
Download :
Catalogues

Features

  • Intelligent refrigerant control
  • Highly efficient operation
  • Energy saving technology that boosts operation efficiency
  • Reducing outdoor unit installation space
  • High external static pressure
  • Piping flexibility and safety measures
  • Enhanced disaster safety measures
  • Extended operating range for ambient temperature
  • Rotation defrosting
  • Environmentally conscious with low-noise mode
  • Safety measures in case of refrigerant leak

Capacity

Cooling   61.5 kW
Heating   61.5 kW (Nominal) / 69.0 kW (Max.)

Specifications

Rated Capacity Range 22 HP
Max. Number of Connectable Indoor Units*1 2 - 47
Connectable Capacity of Indoor Units 30.8 - 92.2 kW
Scroll
Power Source Phase 3 phase 3N
Voltage 400 V
Frequency 50 Hz
Capacity Cooling 61.5 kW
Nominal Heating 61.5 kW
Max. Heating 69.0 kW
Input Power Cooling 17.62 kW
Heating 15.56 kW
Nominal Heating 15.56 kW
Max. Heating 20.36 kW
EER Cooling 3.49 W/W
COP Nominal Heating 3.95 W/W
Max. Heating 3.38 W/W
SEER Cooling 7.97
SCOP Heating 4.05
ηc Cooling 315.8 %
ηh Heating 159.0 %
Airflow Rate 22200 m³/h
Sound Pressure Level*2 Cooling 65 dB(A)
Heating 67 dB(A)
Sound Power Level Cooling 85 dB(A)
Heating 87 dB(A)
Max. External Static Pressure 110 Pa
Compressor Motor Output 6.1 kW
Heat Exchanger Fin Blue fin
Net Dimensions Height 1690 mm
Width 1600 mm
Depth 765 mm
Net Weight 414 kg
Refrigerant Type R32
Global Warming Potential 675
Charge 11.8 kg (8 CO2eq–T)
Total Pipe Length 700 m
Scroll
*
There is no change from the conventional model.
Note :
Specifications are based on the following conditions.
Cooling:
Indoor temperature of 80°F (26.7°C) DB / 67°F (19.4°C) WB, and outdoor temperature of 95°F (35.0°C) DB / 75°F (23.9°C) WB.
Heating:
Indoor temperature of 70°F (21.1°C) DB / 60°F (15.6°C) WB, and outdoor temperature of 47°F (8.3°C) DB / 43°F (6.1°C) WB.
Pipe length:
25ft. (7.5 m); Height difference between outdoor unit and indoor unit : 0ft. (0 m).

Dimensions

Outdoor Unit : AJY198HALAH

Outdoor unit
