Heat Pump / Heat Recovery Modular type VU-V Series AJY126HALAH  [3Phase]

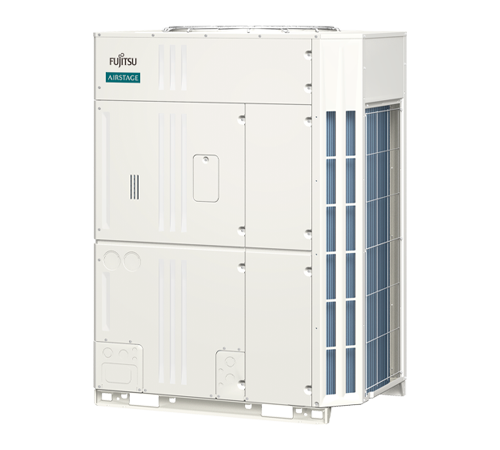

Outdoor unit

Outdoor Unit :
AJY126HALAH
Download :
Catalogues

Features

  • Intelligent refrigerant control
  • Highly efficient operation
  • Energy saving technology that boosts operation efficiency
  • Reducing outdoor unit installation space
  • High external static pressure
  • Piping flexibility and safety measures
  • Enhanced disaster safety measures
  • Extended operating range for ambient temperature
  • Rotation defrosting
  • Environmentally conscious with low-noise mode
  • Safety measures in case of refrigerant leak

Capacity

Cooling   40.0 kW
Heating   40.0 kW (Nominal) / 45.0 kW (Max.)

Specifications

Rated Capacity Range 14 HP
Max. Number of Connectable Indoor Units*1 2 - 30
Connectable Capacity of Indoor Units 10.0 - 60.0 kW
Scroll
Power Source Phase 3 phase 3N
Voltage 400 V
Frequency 50 Hz
Capacity Cooling 40.0 kW
Nominal Heating 40.0 kW
Max. Heating 45.0 kW
Input Power Cooling 11.76 kW
Heating 9.52 kW
Nominal Heating 9.52 kW
Max. Heating 12.07 kW
EER Cooling 3.40 W/W
COP Nominal Heating 4.20 W/W
Max. Heating 3.72 W/W
SEER Cooling 7.73
SCOP Heating 4.61
ηc Cooling 306.2 %
ηh Heating 181.4 %
Airflow Rate 13200 m³/h
Sound Pressure Level*2 Cooling 61 dB(A)
Heating 62 dB(A)
Sound Power Level Cooling 81 dB(A)
Heating 82 dB(A)
Max. External Static Pressure 80 Pa
Compressor Motor Output 7.9 kW
Heat Exchanger Fin Blue fin
Net Dimensions Height 1690 mm
Width 1240 mm
Depth 765 mm
Net Weight 278 kg
Refrigerant Type R32
Global Warming Potential 675
Charge 11.8 kg (8 CO2eq–T)
Total Pipe Length 700 m
Scroll
*
There is no change from the conventional model.
Note :
Specifications are based on the following conditions.
Cooling:
Indoor temperature of 80°F (26.7°C) DB / 67°F (19.4°C) WB, and outdoor temperature of 95°F (35.0°C) DB / 75°F (23.9°C) WB.
Heating:
Indoor temperature of 70°F (21.1°C) DB / 60°F (15.6°C) WB, and outdoor temperature of 47°F (8.3°C) DB / 43°F (6.1°C) WB.
Pipe length:
25ft. (7.5 m); Height difference between outdoor unit and indoor unit : 0ft. (0 m).

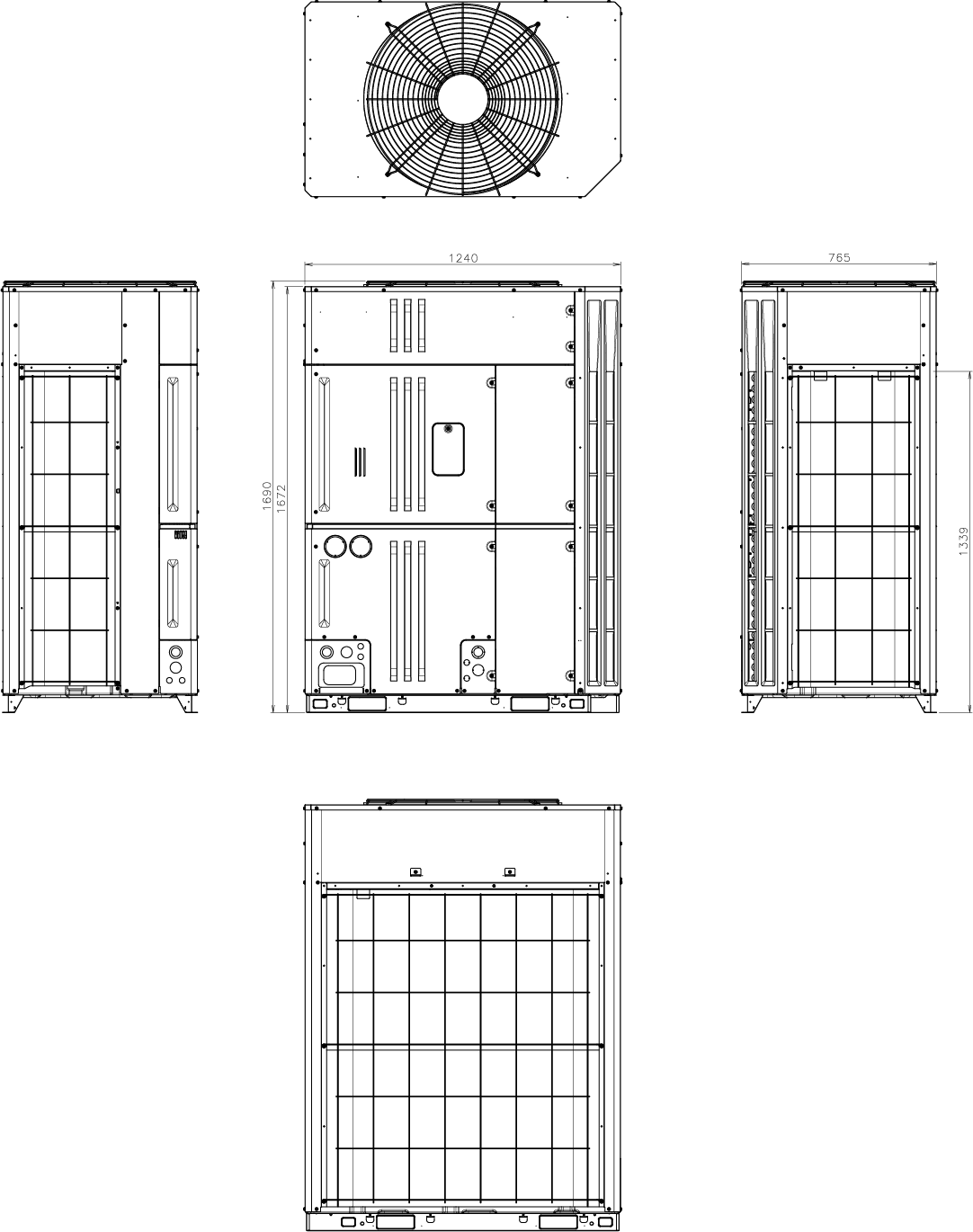

Dimensions

Outdoor Unit : AJY126HALAH

Outdoor unit
