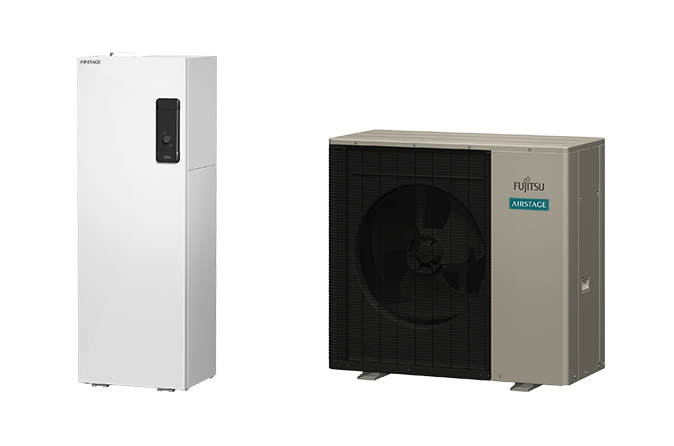

Monobloc type Comfort Series WGEP100KR3-19 / WPEG80KRF
Features
- Aesthetic and Compact Design
- Energy efficiency class
- Easy pipe work
- Durability and Reliability
- Comfort Control
- Individual Control
- Easy Installation & Maintenance
- Supplies 60°C hot water even when the outdoor temperature is -5°C.
- Supplies 55°C hot water even when the outdoor temperature is -10°C.
- Can be used with a variety of heating systems, including under floor heating and radiators.*
- Heating and DHW supply in one system.*
- Up to Three independent control circuits.*
- Operating range is -20 to 35°C in heating.
- Cooling operation is possible
* Please refer to page W-046 and W-047 for optional parts information.
Specifications
| Capacity Range | 8 | ||
|---|---|---|---|
| Power Source | Phase | Single phase | |
| Voltage | 230 V | ||
| Frequency | 50 Hz | ||
| 7°C/35°C floor heating | Heating Capacity | 8.00 kW | |
| Input Power | 1.570 kW | ||
| COP | 5.08 | ||
| 7°C/55°C radiator | Heating Capacity | 8.00 kW | |
| Input Power | 2.620 kW | ||
| COP | 3.05 | ||
| -7°C/55°C radiator | Heating Capacity | 7.50 kW | |
| Input Power | 3.620 kW | ||
| COP | 2.07 | ||
| 35°C/18°C cooling mode | Heating Capacity | 7.69 kW | |
| Input Power | 1.720 kW | ||
| EER | 4.47 | ||
Scroll
Space Heating Characteristics
| Temperature Application | 55 °C | 35 °C | |
|---|---|---|---|
| Energy Efficiency Class | A++ | A+++ | |
| Rated heat output (Prated) | 9 kW | 9 kW | |
| Seasonal Space Heating Energy Efficiency(ηs) | 139 % | 195 % | |
| Annual Energy Consumption | 5078 kWh | 3764 kWh | |
| Sound Power Level | Outdoor Unit | 56 dB(A) | 56 dB(A) |
Scroll
Domestic Hot Water Characteristics
| Load Profile | L | |
|---|---|---|
| Energy Efficiency(ηwh) | 124 % | |
Scroll
Indoor unit Specification
| Dimensions | Height | 1755 mm | |
|---|---|---|---|
| Width | 598 mm | ||
| Depth | 623 mm | ||
| Weight (Net) | 130.0 kg | ||
| Expansion Vessel Capacity | 12 L | ||
| Water flow tempreature range | Max. | 60 °C | |
| Electrical heater capacity | Heating | 6.00 kW | |
| Delclared load profile | L | ||
| Efficiency η DHW | 124 % | ||
Scroll
Outdoor Unit Specifications
| Current | Max. | 19.1 A | |
|---|---|---|---|
| Water flow tempreature range | Max. | 60 °C | |
| Dimensions | Height | 1008 mm | |
| Width | 1080 mm | ||
| Depth | 480 mm | ||
| Weight (Net) | 109.0 kg | ||
| Refrigerant | Type | R32 | |
| Global Warming Potential | 675 | ||
| Charge | 1.47 kg | ||
| Connection pipe | Water | φ25.4 mm | |
| Operating range | Heating | Min. | 35 °C |
| Max. | -20 °C | ||
Scroll
Dimensions
Indoor Unit : WGEP100KR3-19
Outdoor Unit : WPEG80KRF
Optional Parts
- Second circuit kit
- UTW-KZDXQ
- DHW loop kit
- UTW-KDLXQ
- DHW expansion kit
- UTW-KDEXQ
- Outdoor temperature sensor
- UTW-KESXQ
- Condensation detection sensor
- UTW-KCDXQ
- Regulation extension kit
- UTW-KREXQ
- Electrical Backup heater relay
- UTW-KBHXQ
- Room thermostat
- UTW-C225XQ (Wired power supply)
- Room thermostat
- UTW-C228XQ (Battery power supply)
- Cover Plate for thermostat
- UTW-KCPXQ
- Drain pan
- UTW-KDPXQ
- Antivibration Rubber feet
- UTW-KARXQ
- Antifreezing valve for Monobloc
- UTW-KAVXQ
