High Static Pressure Range (High-Efficiency &Comfort) ARXH60KHTA  [3Phase]

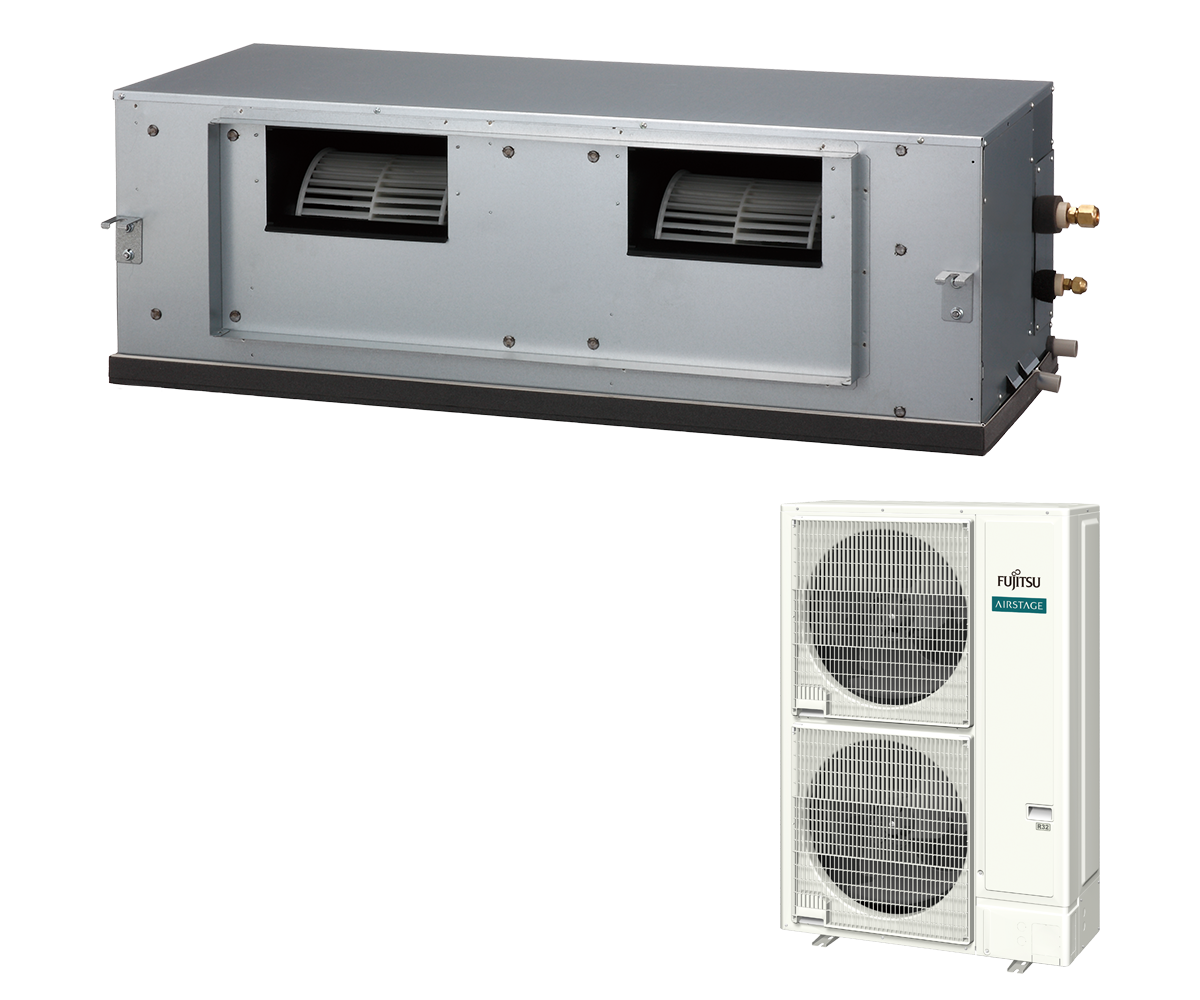

Indoor unit, Remote controller, Outdoor unit

ALL DC
Indoor Unit :
ARXH60KHTA
Outdoor Unit :
AOEH60KRTA
Download :
Catalogues

Features

  • High Energy Efficiency
  • Design Also Corresponding to High Static Pressure
  • Easy Installation (Compact & Lightweight)
  • Automatic Airflow Adjustment Function
  • Link Up with a Variety of Central Control System (Option)

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Filter sign: Indicates the filter cleaning period by blinking. External error output Automatic airflow adjustment: Automatically detects required airflow in each application case and adjusts the volume. Blue fin

Capacity

Cooling   15.0 kW
Heating   18.0 kW

Specifications

Power Source Phase 3 phase 3N
Voltage 400 V
Frequency 50 Hz
Capacity Cooling 15.0 (5.0 - 17.5) kW
Heating 18.0 (5.1 - 22.4) kW
Input Power Cooling 4.410 kW
Heating 4.740 kW
EER Cooling 3.40 W/W
COP Heating 3.80 W/W
ηc Cooling 197.0 %
ηh Heating 153.0 %
Max. Operating Current Cooling 14.50 A
Heating 14.50 A
Moisture Removal 2.40 l/h
Sound Pressure Level*2 Indoor (Cooling) High 45 dB(A)
Middle 40 dB(A)
Low 36 dB(A)
Indoor (Heating) High 45 dB(A)
Middle 40 dB(A)
Low 36 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 53 dB(A)
Outdoor (Heating) High 55 dB(A)
Sound Power Level Indoor (Cooling) High 67 dB(A)
Indoor (Heating) High 67 dB(A)
Outdoor (Cooling) High 71 dB(A)
Outdoor (Heating) High 71 dB(A)
Airflow Rate Indoor (Cooling) High 3550 m³/h
Outdoor (Cooling) High 7000 m³/h
Static Pressure Range (standard) 60 - 260 (60) Pa
Net Dimensions
Indoor		 Height 425 mm
Width 1250 mm
Depth 490 mm
Net Dimensions
Outdoor		 Height 1418 mm
Width 970 mm
Depth 370 mm
Net Weight Indoor 52.0 kg
Outdoor 95.0 kg
Connection Pipe Diameter Liquid φ9.52 mm
Gas φ15.88 mm
Drain Hose Diameter φ25(I.D.), φ32(O.D.) mm
Max. Pipe Length (Pre Charge) 75.0 (30.0) m
Max. Height Difference 30 m
Operation Range Cooling -15 to 50 °C DB
Heating -20 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 3400 g (2.295 CO2eq–T)
Scroll

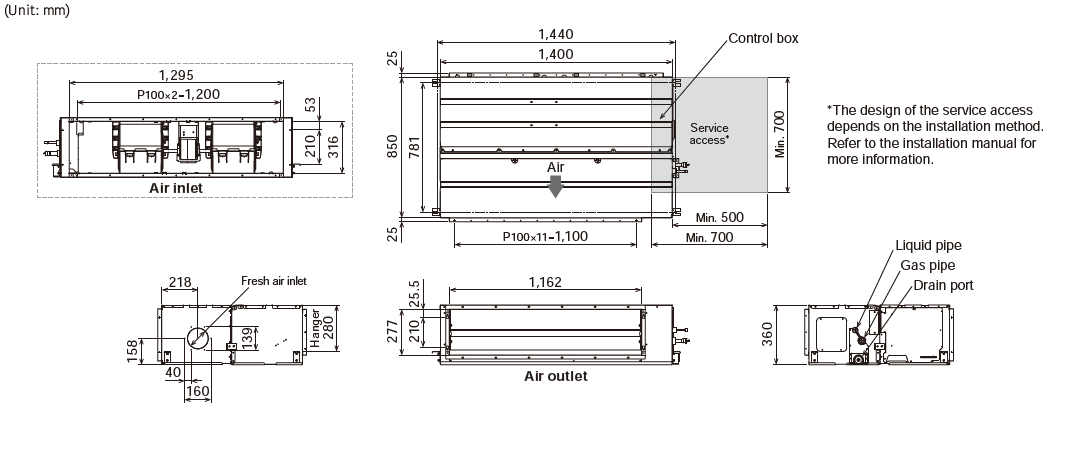

Dimensions

Indoor Unit : ARXH60KHTA
