High Static Pressure Range (High-Efficiency) ARXH72KHTA  [3Phase]

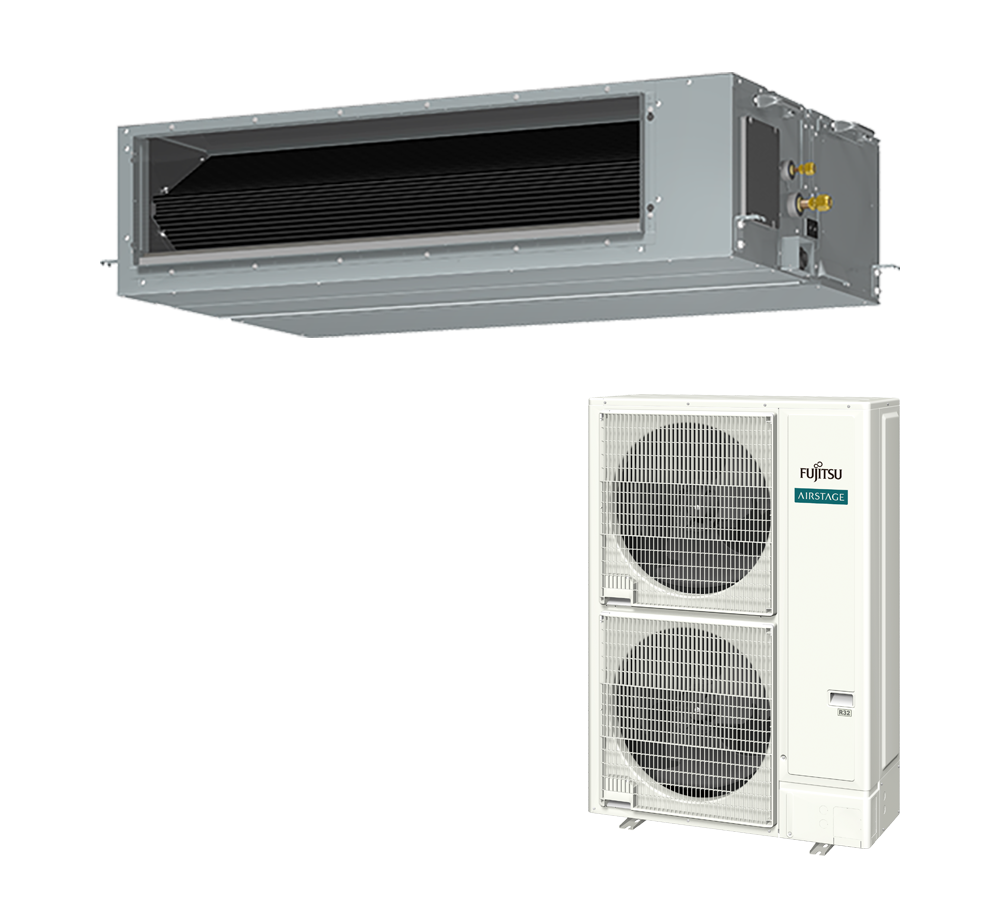

Indoor unit, Remote controller, Outdoor unit

ALL DC
Indoor Unit :
ARXH72KHTA
Outdoor Unit :
AOEH72KRTA
Download :
Catalogues

Features

  • Lightweight and Compact Design
  • Easy To Transport
  • Quiet Operation
  • Automatic Airflow Adjustment Function
  • Link Up with a Variety of Central Control System (Option)

Feature Icons

Economy mode: A thermostat setting is adjusted automatically according to the room temperature to avoid unnecessary cooling or heating. Auto changeover: The unit automatically switches between heating and cooling modes based on the temperature setting and the room temperature. Automatic fan speed: A micro-computer automatically adjusts the airflow to follow the changes in room temperature. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Filter sign: Indicates the filter cleaning period by blinking. External error output Automatic airflow adjustment: Automatically detects required airflow in each application case and adjusts the volume. Blue fin

Capacity

Cooling   19.0 kW
Heating   22.4 kW

Specifications

Power Source Phase 3 phase 3N
Voltage 400 V
Frequency 50 Hz
Capacity Cooling 19.0 (6.0 - 22.0) kW
Heating 22.4 (6.0 - 25.0) kW
Input Power Cooling 6.030 kW
Heating 6.200 kW
EER Cooling 3.15 W/W
COP Heating 3.61 W/W
ηc Cooling 225.0 %
ηh Heating 154.6 %
Max. Operating Current Cooling 18.00 A
Heating 18.00 A
Moisture Removal 4.60 l/h
Sound Pressure Level*2 Indoor (Cooling) High 43 dB(A)
Middle 41 dB(A)
Low 38 dB(A)
Quiet 35 dB(A)
Indoor (Heating) High 43 dB(A)
Middle 41 dB(A)
Low 38 dB(A)
Quiet 35 dB(A)
Sound Pressure Level*2 Outdoor (Cooling) High 61 dB(A)
Outdoor (Heating) High 64 dB(A)
Sound Power Level Indoor (Cooling) High 73 dB(A)
Indoor (Heating) High 73 dB(A)
Outdoor (Cooling) High 75 dB(A)
Outdoor (Heating) High 75 dB(A)
Airflow Rate Indoor (Cooling) High 3800 m³/h
Outdoor (Cooling) High 9600 m³/h
Static Pressure Range (standard) 60 - 200 (72) Pa
Net Dimensions
Indoor		 Height 360 mm
Width 1400 mm
Depth 850 mm
Net Dimensions
Outdoor		 Height 1418 mm
Width 970 mm
Depth 370 mm
Net Weight Indoor 69.0 kg
Outdoor 103.0 kg
Connection Pipe Diameter Liquid φ12.7 mm
Gas φ19.05 mm
Drain Hose Diameter φ31(I.D.), φ32(O.D.) mm
Max. Pipe Length (Pre Charge) 100.0 (40.0) m
Max. Height Difference 30 m
Operation Range Cooling -15 to 50 °C DB
Heating -20 to 24 °C DB
Refrigerant Type R32
Global Warming Potential 675
Charge 4000 g (2.700 CO2eq–T)
Scroll

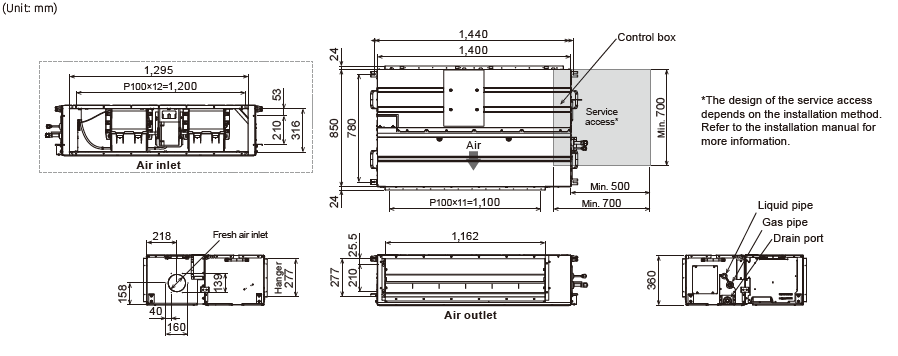

Dimensions

Indoor Unit : ARXH72KHTA

Indoor unit
