Wired Remote Controller with Touch Panel UTY-RNRYZ6

Max. number of controllable units :: 16 indoor units
Max. number of controllable groups :: 1 group

Download :: Catalogues

Features

Easy Operation Due to Large High-Resolution STN-LCD Touch Panel Screen

Touch screen LCD
Built-in daily/weekly timer (On/Off, temperature, modes)
Backlit screen for easy operation in the dark.
Room temperature display
Controls up to 16 indoor units
Supports 11 languages: Chinese, Dutch, English, French, German, Greek, Italian, Polish, Portuguese, Spanish, and Turkish
Nonpolar 2-core type

High Performance and Compact Size

A single remote controller controls each connected indoor unit and provides a weekly timer function and a variety of energy-saving options.

Energy Saving Controls

Custom Auto

Cooling temp. set at 27℃; Heating temp. set at 26℃

Maintains 2 separate setpoints for heating and cooling operations.
Automatically switches between heating and cooling modes.

*: Not available for some models

Auto-off timer

e.g.) Between 17:00 and 24:00 (over time hours), when the 1 hour set off time has elapsed, the system will automatically turn off the indoor unit as it has been judged to be "forgotten to turn off." Set off time for over time hours: 1 hour

While the Auto-off timer is activated, if the set off time is specified as, for example, one hour, the power will automatically turn off one hour after the start of operation.
A desired time frame can be specified for the Auto-off timer.
The off-time can be set from 30 to 240 minutes.

2-setting weekly timer

Set temperature auto return

Setting temperature range limitation

Safety Measures for R32 Products^*1

Clearly indicates refrigerant leak

In the event of a refrigerant leak, the following actions will clearly notify the user:

A buzzer will sound
The backlight and operation indicator lamp will flash
A message will appear on the display

*1: The necessity of a refrigerant leak detector varies depending on room conditions. For details, please refer to the Design & Technical Manual.

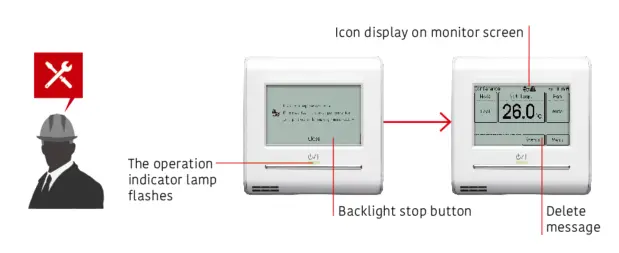

Notify when it’s time to replace the detector

One year before the refrigerant leak detector needs replacement, it will notify the user with the following actions:

Display a message and icon
The operation indicator lamp will flash

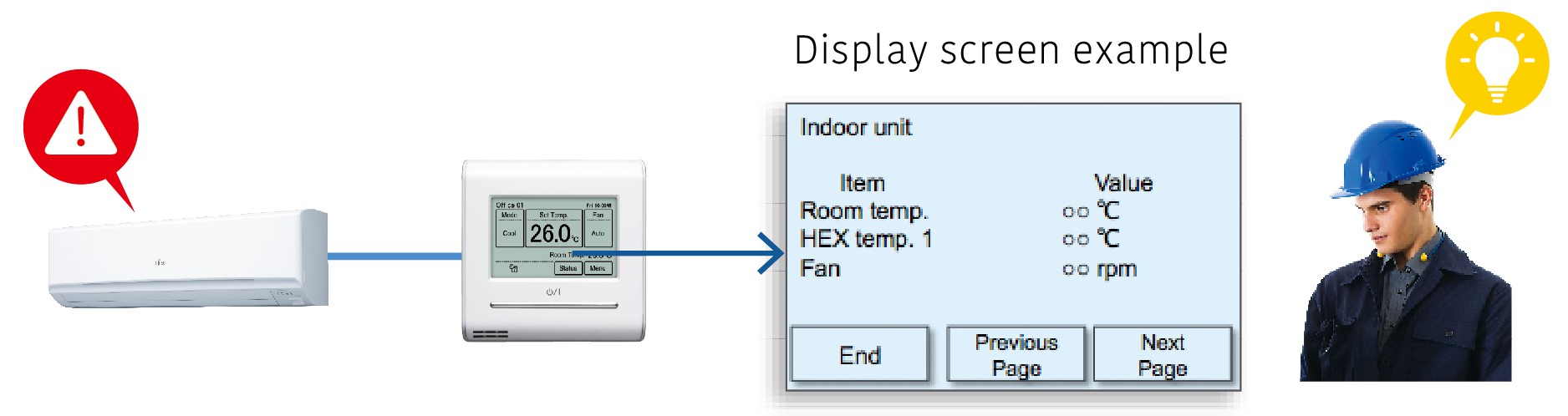

Refrigerant Cycle Monitor (Option)

Wired Remote Controller (Touch Panel) will support to display some sensor values for maintenance and service support.

*: This function is only supported by split units, using the H-Serial communication protocol. Example: ASYH30KMTB

Multi System Control^*2

Lead Lag Operation

Standby Indoor Unit can be selected in lead lag operation. By this, the Indoor units will last longer than operating by nonstop.

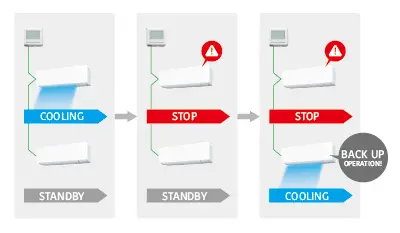

Back Up Operation

In case of unexpected Indoor unit error, other Indoor units will start providing back up operation.

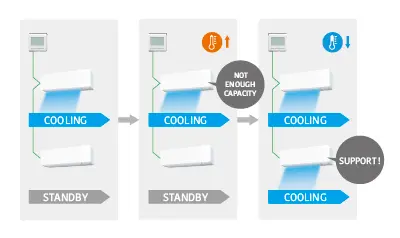

Lag Operation

In case of unexpected room temperature rise, other Indoor Units will start providing lag operation.

*2: "Lead Lag Setting" is an easy-to-use function for room temperature control when using multiple indoor units, while reducing the burden placed on each indoor unit. If you wish to make use of this function, ensure you use indoor units equipped with a "Special Cooling" function. For Split products with “Special Cooling” function, refer to S-068 to S-071. If you use indoor units that do not have a "Special Cooling" function, under certain conditions, there is a chance that "Backup operation" may not operate correctly, and the "Lead Lag Setting" function will not give the expected results. Additionally, for rooms that require strict conditions, such as server rooms, please consider other appropriate measures. Please note that we will not provide compensation for any damages suffered to your appliances or data as a result of using this function. For more details, please confirm with your nearest retail store.

Specifications

Model Name		UTY-RNRYZ6
Power Supply		12 V DC
Net Dimensions	Height	120 mm
	Width	120 mm
	Depth	20.4 mm
Net Weight		220 g

Scroll

*: 12 V DC supplied by an indoor unit
