Cassette type Circular Flow Large (Built-in gas sensor) AUXK045HLBH
Features
- Unique Circular Flow Design
- Uniform Temperature Air Conditioning
- Individual Louver Control
- Safety measures in Case of Refrigerant Leak
- The Occupancy Sensor Contributes to Further Energy Savings
Capacity
12.5 kW
14.0 kW
Specifications
| Power Source | Phase | Single phase | |
|---|---|---|---|
| Voltage | 220~240 V | ||
| Frequency | 50 Hz | ||
| Capacity | Cooling | 12.5 kW | |
| Heating | 14.0 kW | ||
| Input Power | 94 W | ||
| Airflow Rate | Cooling | High | 1820 m³/h |
| Medium High | 1590 m³/h | ||
| Middle | 1500 m³/h | ||
| Low High | 1400 m³/h | ||
| Low | 1300 m³/h | ||
| Quiet | 1150 m³/h | ||
| Heating | High | 1820 m³/h | |
| Medium High | 1590 m³/h | ||
| Middle | 1500 m³/h | ||
| Low High | 1400 m³/h | ||
| Low | 1300 m³/h | ||
| Quiet | 1150 m³/h | ||
| Sound Pressure Level*2 | Cooling | High | 44 dB(A) |
| Medium High | 42 dB(A) | ||
| Middle | 40 dB(A) | ||
| Low High | 38 dB(A) | ||
| Low | 36 dB(A) | ||
| Quiet | 33 dB(A) | ||
| Heating | High | 44 dB(A) | |
| Medium High | 42 dB(A) | ||
| Middle | 40 dB(A) | ||
| Low High | 38 dB(A) | ||
| Low | 36 dB(A) | ||
| Quiet | 33 dB(A) | ||
| Net Dimensions | Height | 288 mm | |
| Width | 840 mm | ||
| Depth | 840 mm | ||
| Net Weight | 29.5 kg | ||
| Connection Pipe Diameter | Liquid (Flare) | φ9.52 mm | |
| Gas (Flare) | φ15.88 mm | ||
| Drain Hose Diameter | φ25(I.D.), φ32(O.D.) mm | ||
Scroll
| Cassette Grille | Model Name | UTG-UKYC-W / UTG-UKYA-B | |
|---|---|---|---|
| Net Dimensions | Height | 53 mm | |
| Width | 950 mm | ||
| Depth | 950 mm | ||
| Net Weight | 6.0 kg | ||
Scroll

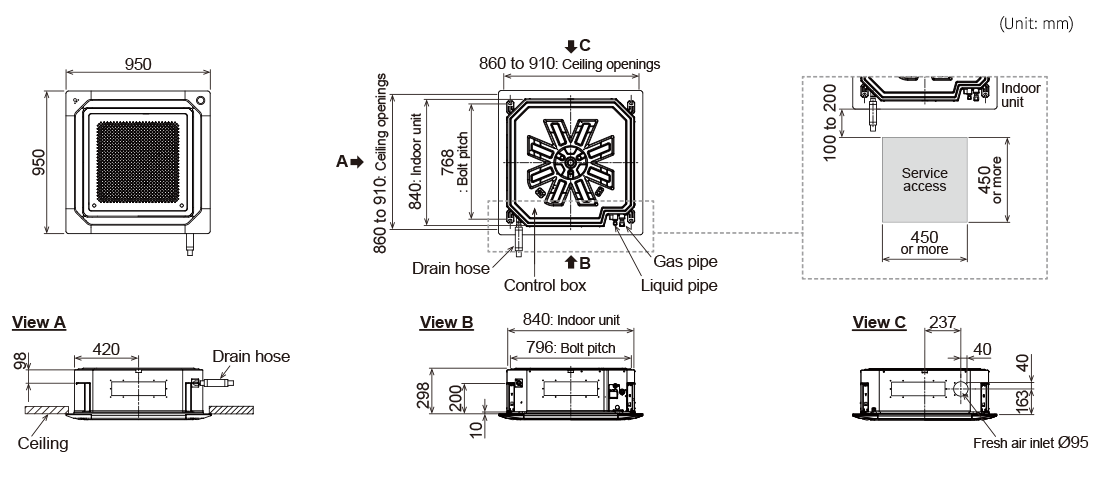

Dimensions
Indoor Unit : AUXK045HLBH
