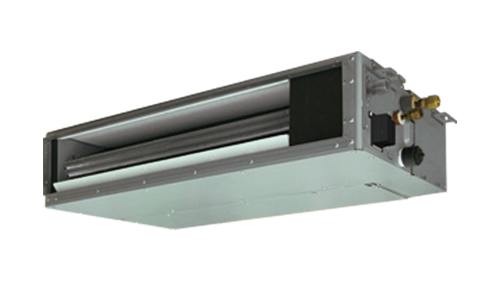

Duct Mini ARXK018HLBH
Features
- Space Saving Design
- Optimum Airflow Path and Low Noise Operation
- 6-Speed Control
- Safety measures in Case of Refrigerant Leak
- Easy to Design and Maintain for Drain
Capacity
5.6 kW
6.3 kW
Specifications
| Power Source | Phase | Single phase | |
|---|---|---|---|
| Voltage | 220-240 V | ||
| Frequency | 50 Hz | ||
| Capacity | Cooling | 5.6 kW | |
| Heating | 6.3 kW | ||
| Input Power | 98 W | ||
| Airflow Rate | Cooling | High | 1150 m³/h |
| Medium High | 990 m³/h | ||
| Middle | 840 m³/h | ||
| Low High | 690 m³/h | ||
| Low | 590 m³/h | ||
| Quiet | 470 m³/h | ||
| Heating | High | 1150 m³/h | |
| Medium High | 990 m³/h | ||
| Middle | 840 m³/h | ||
| Low High | 690 m³/h | ||
| Low | 590 m³/h | ||
| Quiet | 470 m³/h | ||
| Static Pressure Range | 0 to 50 Pa | ||
| Standard Static Pressure | 15 Pa | ||
| Sound Pressure Level*2 | Cooling | High | 35 dB(A) |
| Medium High | 30 dB(A) | ||
| Middle | 28 dB(A) | ||
| Low High | 26 dB(A) | ||
| Low | 24 dB(A) | ||
| Quiet | 22 dB(A) | ||
| Heating | High | 35 dB(A) | |
| Medium High | 30 dB(A) | ||
| Middle | 28 dB(A) | ||
| Low High | 26 dB(A) | ||
| Low | 24 dB(A) | ||
| Quiet | 22 dB(A) | ||
| Net Dimensions | Height | 198 mm | |
| Width | 900 mm | ||
| Depth | 450 mm | ||
| Net Weight | 19.0 kg | ||
| Connection Pipe Diameter | Liquid (Flare) | φ6.35 mm | |
| Gas (Flare) | φ12.7 mm | ||
| Drain Hose Diameter | φ25(I.D.), φ32(O.D.) mm | ||
Scroll

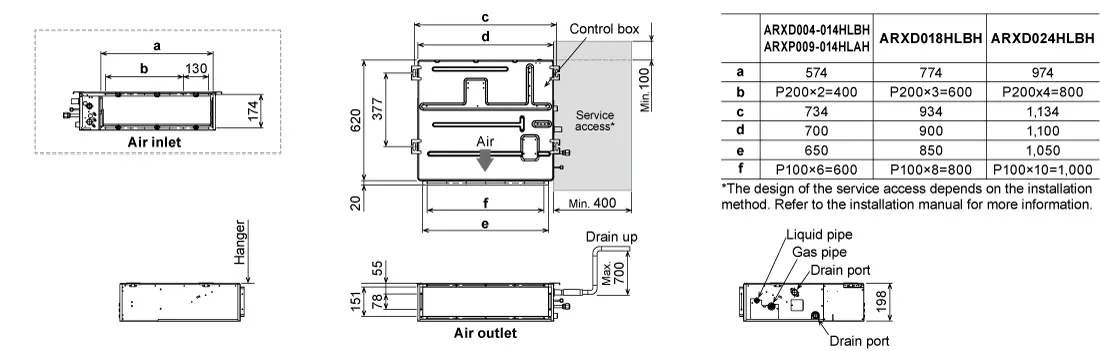

Dimensions
Indoor Unit : ARXK018HLBH
